Pipelining

A single-cycle processor finishes one instruction before it begins the next, leaving most of the hardware idle at any given moment. Pipelining changes that by moving several instructions through the processor at once, each in a different stage of the work, much like an assembly line. The overlap multiplies throughput while introducing a new set of hazards along the way.

Think you got this already? Skip to Check Yourself

A hand-drawn illustration of a winding pipe made of alternating purple and teal segments, with the word Pipelining written beside it.

What is Pipelining?

Pipelining is much more simple than you think. If you’ve ever done laundry, you’ve almost certainly done pipelining. Picture working your way through several loads:

Put your first load of dirty clothes into the washer and start it.
When the washer finishes, move that wet load into the dryer. Right away, put your next dirty load into the washer, so both machines are now running at the same time.
When the dryer finishes, take those clothes out and begin folding them. Move the freshly washed load from the washer into the dryer, and start another dirty load in the washer.
Keep repeating this pattern. Before long, a load is being folded, a load is drying, and a load is washing, all at the same moment.

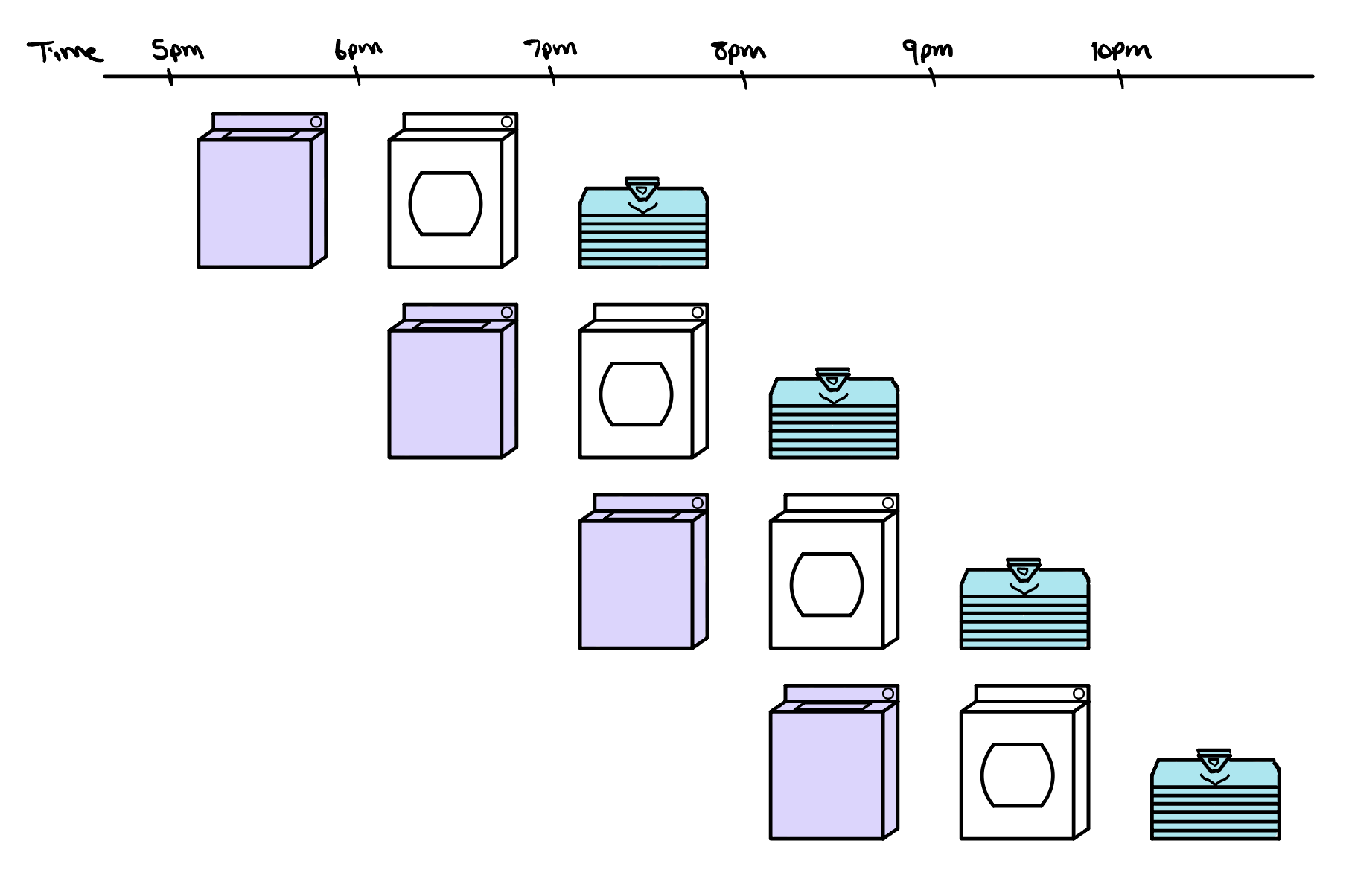

A hand-drawn timing diagram of pipelined laundry. A Time axis runs from 5pm to 10pm in one-hour steps. Four loads move through three stages, a washer, a dryer, and a folded stack, each stage taking one hour. Each load starts an hour after the one before it, so at any moment one load is washing while another is drying and another is being folded, all overlapping like an assembly line.

A single-cycle processor is like doing laundry one load at a time, washing, drying, and folding a load completely before touching the next. Pipelining, like a well-run laundry day, keeps every stage busy so far more work finishes in the same amount of time.

Notice how at the very beginning and the very end of the workflow, only one task is happening at a single moment in time. This is the pipeline filling and draining, and it is why the speedup is never quite as large as you might hope when there are only a few loads to run. With a very large number of loads, the throughput improvement grows close to the number of stages the work is split into, which here is three. With just a handful, though, those partly empty hours at the start and finish hold it back. Our single-cycle laundry takes twelve hours to work through four loads at three hours each, so a threefold speedup would suggest four hours. In practice the pipelined version finishes those same four loads in six hours, a twofold improvement, and only as the loads pile up does the gain creep toward the full threefold.

This same regularity is why the RISC-V instruction set was designed with pipelining in mind. Every instruction is exactly the same length, so the processor always knows where one instruction ends and the next begins, and can fetch them in a steady rhythm. The fields inside an instruction, like the registers it reads and writes, almost always sit in the same bit positions, so the Decode stage can start pulling them out right away instead of first working out the instruction's shape. And unlike x86, RISC-V never operates directly on values still sitting in memory. Arithmetic happens only on registers, and memory is reached only through dedicated load and store instructions. That keeps every instruction to one predictable job and lets memory access live in its own stage, exactly the kind of regularity a pipeline needs to keep every stage busy.

A Simple 5-Stage Pipeline

In our pipelined processor, we break the work each instruction has to do into five smaller stages, and we let a different instruction sit in each one at the same time. From start to finish, every instruction moves through the same five steps:

Fetch: we grab the next instruction from instruction memory, using the program counter to know which one to read.
Decode: we work out what the instruction is asking for and read its source values out of the register file.
Execute: the ALU does the actual work, whether that is an addition, a subtraction, or a comparison.
Memory: if the instruction needs it, we access an operand in data memory, reading a value for a load or writing one for a store.
Writeback: we write the result back into the register file so that later instructions can use it.

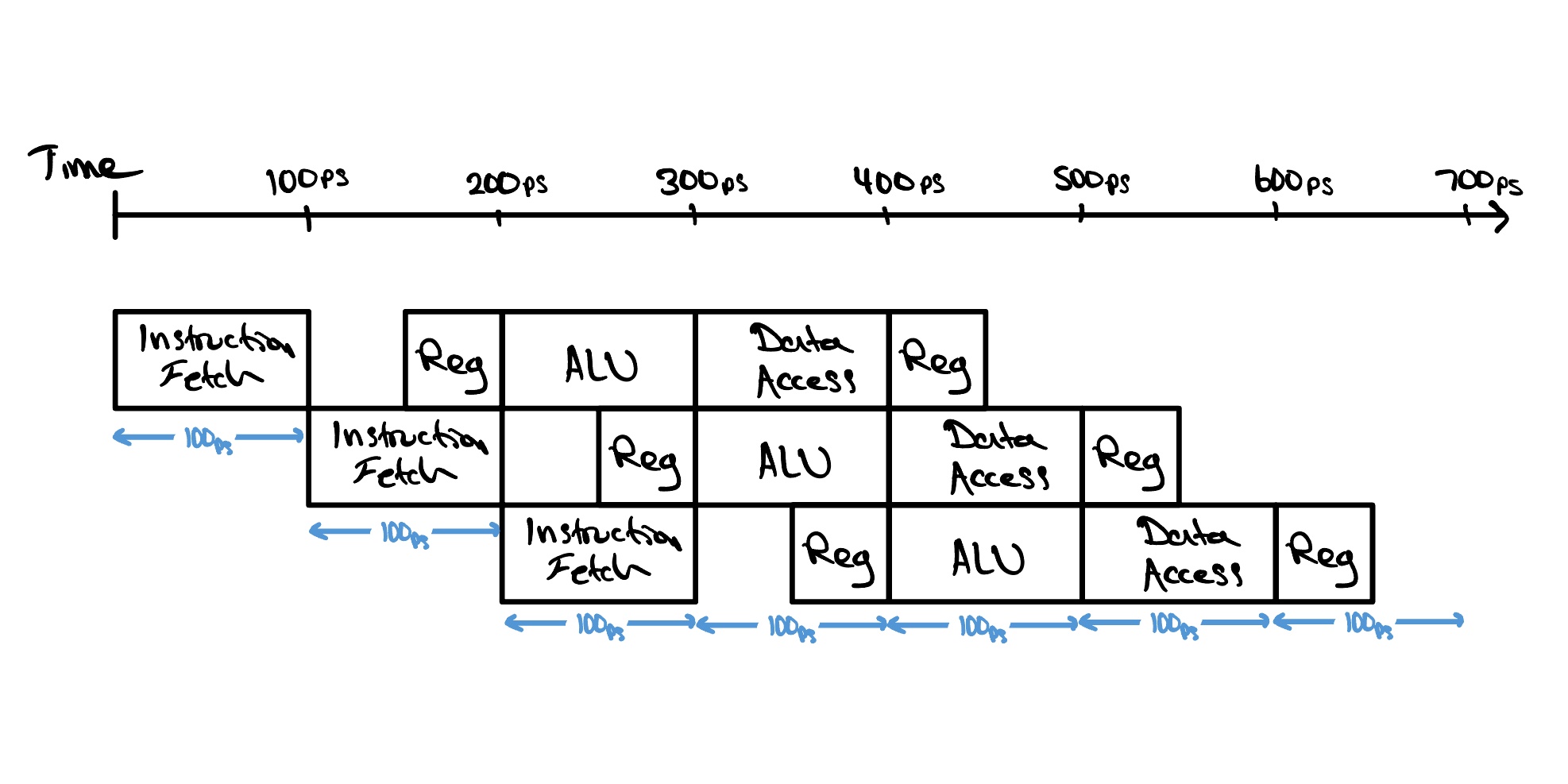

A hand-drawn pipeline timing diagram. A Time axis runs from 0 to 700 picoseconds in 100 ps steps. Three instructions move through five stages, labeled Instruction Fetch, Reg, ALU, Data Access, and Reg, each stage taking 100 ps. Each instruction starts 100 ps after the one before it, so at any moment several of them occupy different stages at once. — It is assumed that the write to the register file occurs in the first half of the clock cycle while the read occurs in the second half.

Splitting the work this way also changes what sets our clock speed. In the single-cycle CPU, every instruction had to finish all of its work inside a single clock cycle, so the clock had to be slow enough for the slowest instruction to make it from start to end. In the pipelined design, each clock cycle only has to be long enough for the slowest single stage to do its part, since that is as far as any one instruction advances in a cycle. Our clock is now bottlenecked by the slowest stage rather than the slowest instruction.

This does not make an individual instruction any quicker. A single instruction still has to travel through all five stages, so the time from when it enters the pipeline to when it comes out the other end is just the same as before. What changes is that we now keep five instructions in flight at once, each sitting in a different stage. Once the pipeline is full, a finished instruction comes out every clock cycle instead of every five, which dramatically raises our throughput, the number of instructions the processor completes in a given amount of time.

Pipelining Hazards

Pipelining gives us a big jump in throughput, but it does not come entirely for free. Because several instructions are now flowing through the processor at once, moments come up where the next instruction cannot safely begin on the very next clock cycle. We call these moments hazards, and if we ignore them, the pipeline will happily compute the wrong answer.

A hand-drawn wall outlet with a single plug pushed into the top socket, illustrating that only one machine can draw power at a time.

Structural Hazards

A structural hazard is a hardware limitation. It happens when the hardware simply cannot support the combination of instructions we want to run in the same clock cycle, because two of them need the same piece of hardware at the same moment. Think back to the laundry: imagine your washer and dryer both have to be plugged into a single power outlet, so only one of them can run at any given moment. Even with two separate machines, a fresh load cannot start washing while an earlier load is still drying, and the line stalls until the outlet frees up.

Data Hazards

Data hazards are a little more interesting. They happen when one step depends on a result that an earlier step has not finished producing yet, so it cannot safely move on. In our pipeline, an instruction reads the values it needs during Decode, while the instruction just ahead of it is often still in flight and will not write its own result back to the register file until Writeback, several stages later. If the second instruction depends on that result, it cannot simply carry on; it has to wait until the value it needs actually exists.

Back in the laundry, imagine your next task is to iron a particular shirt, but that shirt is part of the load still churning in the washer. The iron is hot and the board is set up, yet there is nothing for you to do, because the shirt you need has not been washed and dried yet. You are not waiting for a machine to free up this time; you are waiting for a specific item that the load ahead of you has to finish producing before your step can use it.

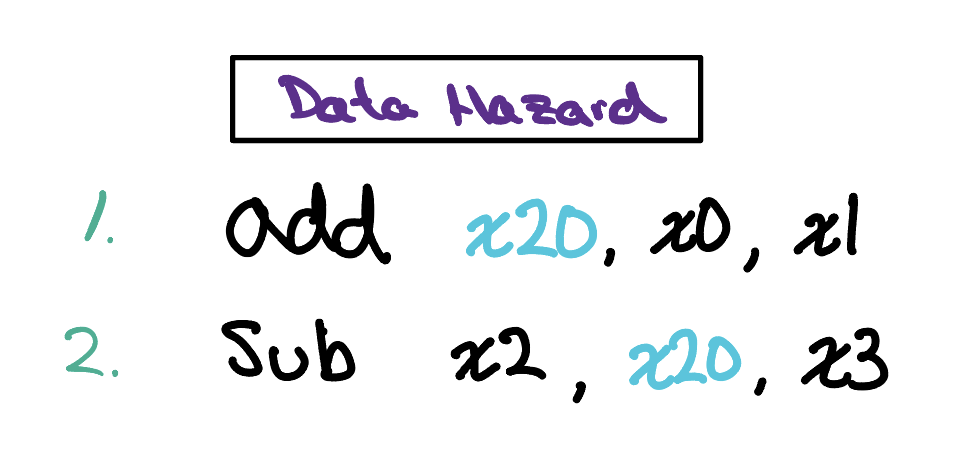

Two RISC-V instructions. The first, add x20, x0, x1, writes its result into register x20. The second, sub x2, x20, x3, reads x20 as a source, so it depends on the result of the add just ahead of it.

An example of how we might encounter a data hazard in our RISC-V pipelined processor is shown here. The first instruction, add, takes the values sitting in x0 and x1 and writes their sum into x20. The very next instruction, sub, then needs that same x20 as one of the values it works with. This is exactly where the trouble appears. The add instruction does not write its result back into x20 until its Writeback stage, yet sub tries to read x20 several stages earlier, during its own Decode. The value that sub is counting on simply does not exist in the register file yet, so if we do nothing, the processor will read a stale x20 and quietly compute the wrong answer.

Fortunately, we can get around this without ever stalling the pipeline. The key realization is that we do not actually need to wait for the entire add instruction to finish before we can make use of its result. By the time add reaches the end of its Execute stage, the ALU has already computed the sum that belongs in x20, even though that value has not yet been written back. Rather than let it sit idle, we can route that freshly computed result straight from the output of the Execute stage of add into the input of the Execute stage of sub, arriving precisely when sub needs it. This technique is called forwarding, or bypassing, and it lets the dependent instruction carry on without losing a single cycle. In the diagram below, you can follow the purple Forward arrow as it carries the ALU result of add directly down into the Execute stage of sub, skipping the long wait for the register file.

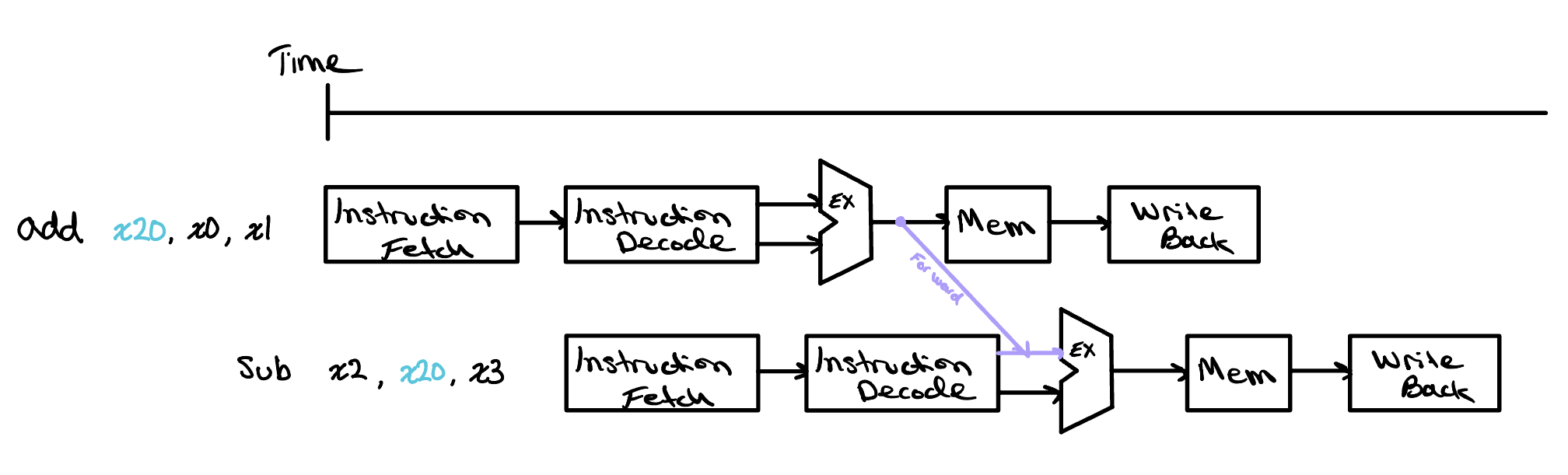

A pipeline timing diagram of the two instructions. The add instruction and the sub instruction each move through Instruction Fetch, Instruction Decode, Execute, Mem, and Write Back. A purple arrow labeled Forward runs from the output of the add instruction's Execute stage down into the input of the sub instruction's Execute stage, delivering the ALU result before it is written back to the register file.

This trick works only because an arithmetic instruction like add produces its result in the Execute stage, one step ahead of where the instruction behind it needs that value. Things change if the value comes from memory. Suppose the first instruction were instead lw x20, 8(x10), a load that reads x20 from data memory. A load does not have its result ready at the end of Execute; it only pulls the value out one step later, in the Memory stage. But sub needs x20 at its own Execute stage, which lines up with the lw instruction's Memory stage, so the value is simply not ready in time.

This is why it is not really forwarding anymore. Forwarding can only pass a result sideways or forward in time, from a stage that has already finished into one that has not started yet. Here the producing stage, Memory, comes after the stage that needs the value, so sending x20 across would mean pushing it backward in time into an Execute stage that has already happened, which is impossible.

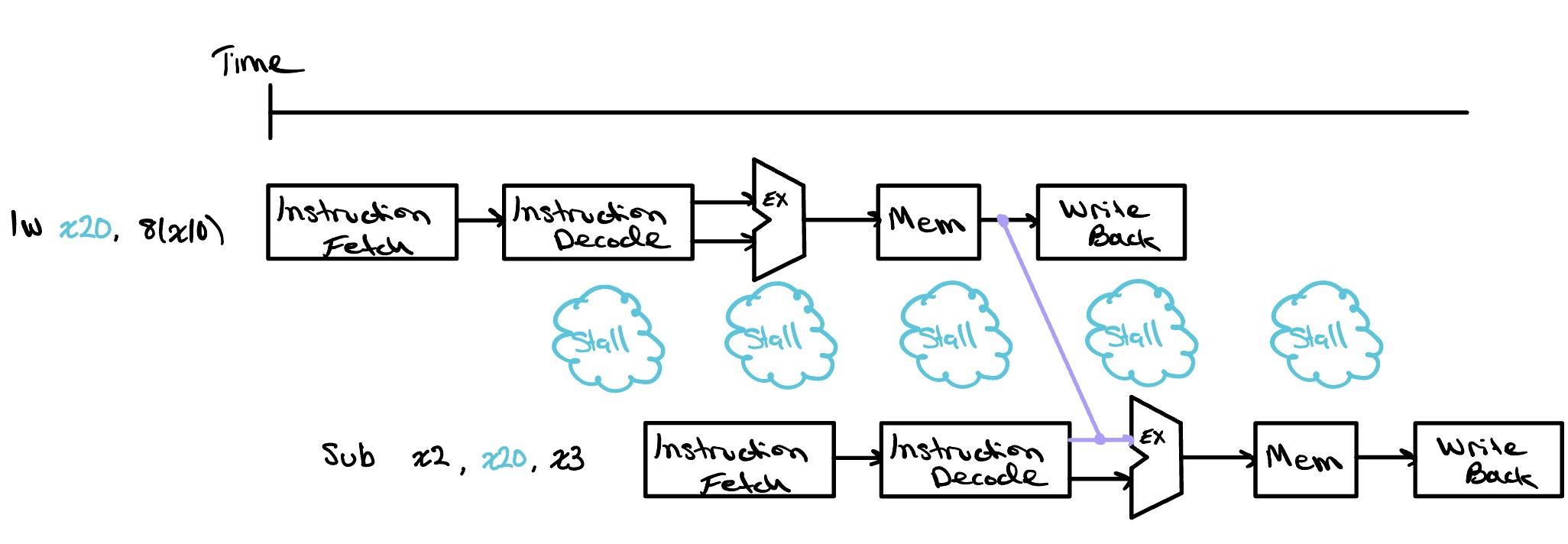

A pipeline timing diagram of the load-use hazard with a stall. The lw x20, 8(x10) instruction moves through Instruction Fetch, Instruction Decode, Execute, Mem, and Write Back. The sub x2, x20, x3 instruction below is held back by a row of Stall bubbles for one cycle, and a purple arrow then forwards the loaded value from the lw instruction's Mem stage into the sub instruction's Execute stage.

The best we can do is stall the sub instruction for a single cycle, letting lw reach the end of its Memory stage first. Once the loaded value exists, we forward it from there into the now delayed Execute stage of sub. This particular case, where a load feeds an instruction right behind it, is common enough to earn its own name, the load-use hazard, and it is the one data hazard that forwarding alone cannot fully hide.

Control Hazards

A control hazard, sometimes called a branch hazard, is the last of our three. It comes up whenever the processor has to make a decision about what to do next based on the result of an instruction that is still working its way through the pipeline. Remember that the pipeline fetches a fresh instruction on every single cycle, one after another, and to do that it has to assume it already knows which instruction comes next. Most of the time it does, because instructions simply run in order. Some instructions, though, change that order, and until one of them finishes the processor cannot be certain which instruction it ought to be fetching.

Back at the laundry, imagine that what you wash next depends on how the load currently in the machine turns out. If it comes out still stained you will run it again, and if it comes out clean you will move on to the towels instead. You cannot know which pile to reach for until the current load has finished, yet the whole point of a smooth laundry day was to always have the next load ready to go. The line is stuck waiting on a decision before it can keep moving.

In a processor this situation comes from branch instructions, the instructions that let a program make choices and repeat work, the jumps that sit behind an if statement or a loop. A branch asks a question, such as whether two values are equal, and then either carries straight on or jumps somewhere else depending on the answer. The trouble is that the branch does not know its own answer until it reaches the Execute stage, several cycles after it was fetched. By then the pipeline has already gone ahead and fetched the instructions sitting right behind it, and if the branch ends up jumping, those were the wrong instructions to load.

There are two ways to deal with this: stalling and predicting.

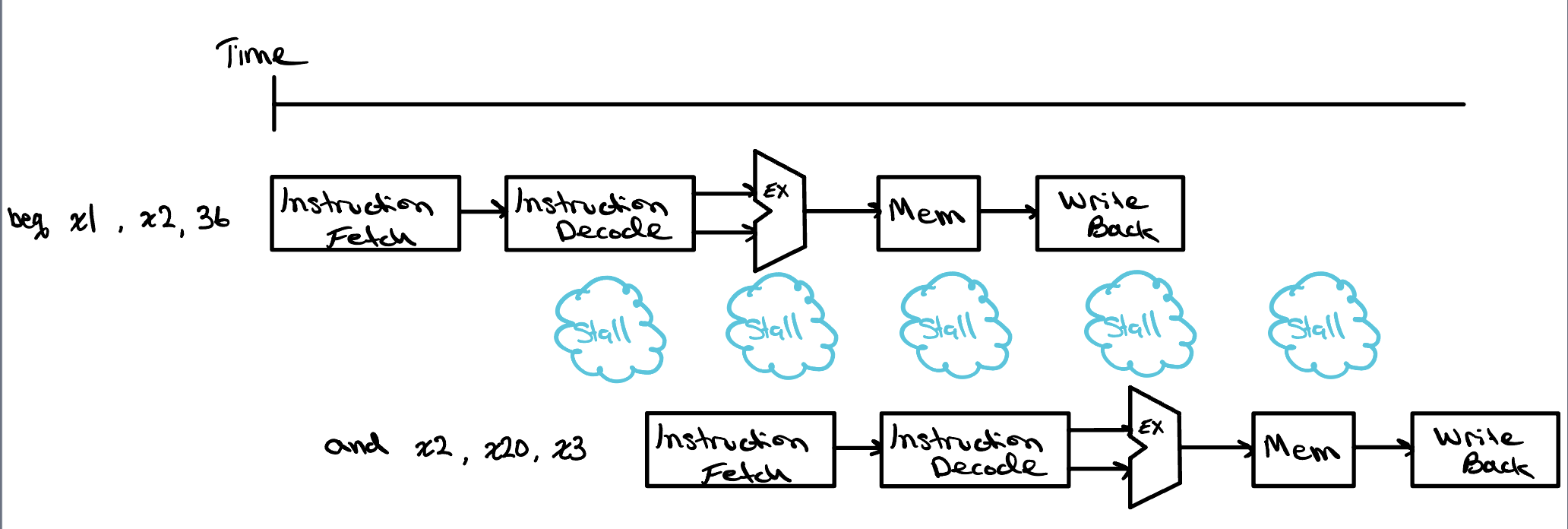

A pipeline timing diagram of a branch stall. The beq x1, x2, 36 branch instruction moves through Instruction Fetch, Instruction Decode, Execute, Mem, and Write Back, while the and x2, x20, x3 instruction behind it is held back by a row of Stall bubbles until the branch has resolved.

Stalling

Stalling is the simplest. We hold the pipeline still on every branch until it has computed its answer and we know for certain which instruction comes next. This is always correct, but it is slow, because branches are common and every one of them would cost us several idle cycles while the rest of the processor sits and waits.

Predicting

Predicting is the faster approach. Rather than wait, the processor makes a prediction about which way the branch will go and keeps fetching from there as though the guess were already known to be right. This is called branch prediction. A predictor can be as simple as always assuming a branch is not taken, or it can watch how each branch behaved in the past and bet that it will do the same again, which works remarkably well for something like a loop that repeats many times.

A guess, of course, can be wrong. When the branch finally resolves and we find that we predicted incorrectly, we have to throw away the instructions we fetched by mistake and start again down the correct path, which costs us exactly the stall we were trying to avoid. The key insight is that a good predictor is right far more often than it is wrong. A correct guess costs us nothing at all, and only the occasional wrong guess costs us a stall, so predicting comes out much faster on average than stalling on every branch, even though we pay a penalty each time we miss.

Check Yourself

For each sequence below, state whether it must stall, can avoid stalls using only forwarding, or can execute without stalling or forwarding.

Three short RISC-V instruction sequences (A, B, and C) that each set up a data hazard between successive instructions in the pipeline.
